Pneumatic Forging Hammer

Features:

1. Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with its self-contained cylinder,require no ancillary power raising plant.
2. The Pneumatic forging hammer is equipped with a self-priming lubricating oil pump, during operating, it can realize the automatic lubrication.
3. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.

  • Introduction
  • Manufacture
  • Videos
  • Pictures
  • Applications
  • Documents

Introduction

anyang air forging hammer



[Introduction of pneumatic forging hammer]



pneumatic forging hammer

Anyang pneumatic forging hammer from from 150kg to 2000kg are widely used in the industrial open die forging. can do drawing-out, upsetting, punching, chiseling, forging welding, bending and twisting etc forging process. It is also used for forging in bolster dies.

Anyang hammers are self contained pneumatic power hammers.  The design is based on the time proved designs of the old European pneumaitc hammers many which are still in use today.  With a self contained power hammer, you require no external air supply or high pressure hoses.

You can forge heavy stock and immediately switch to thin light stock with no adjustments.  With a self contained hammer, you have tremendous forging power (a combination of ram weight, downward air force and velocity) plus precise control.

​The Anyang hammers are engineered to run for decades in harsh factory environments.  The frames are cast iron, like the old Nazel, Buche, and Massey hammers.  Cast iron is more expensive to manufacture compared to fabricated hammers but they are heavier, do not flex over time.



​The internal parts are forged steel and precision machined.  There are no internal rubber air hoses to deteriorate over time.  The drive belts are external to the machine for easy adjustment and away from harmful oil.

​The crankshaft has large tapered roller bearings set in a case filled with grease.  This design provides for decades of trouble free forging.

Anyang Pneumatic Forging Hammer Parameter

Model

C41-150

C41-250

C41-400

C41-560

C41-750

C41-1000

C41-2000

Weight of falling parts(kg)

150

250

400

560

750

1000

2000

Below energy (kj)

2.5

5.6

9.5

13.7

19

27

54

Below frequency(min-1)

180

140

120

115

105

95

80

Height of working area(mm)

370

450

530

600

670

800

1000

Depth of throat(mm)

350

420

520

550

750

800

950

Working

Piece

Square(mm*mm)

130×130

145×

145

220×

220

270×

270

270×

270

290×

290

350×

350

Round(mm)

Φ145

Φ175

Φ240

Φ280

Φ300

Φ320

Φ400

Motor

Model

Y180M-

4-B3

Y180L-

4-B3

Y200L-

 4-B3

Y280S-

6-B3

Y280M-

6-B3

Y315S-

 6-B3

Y315L2-

6-B3

Power (kw)

18.5

22

30

45

55

75

132

Weight

Without anvil(kg)

3260

5000

8000

9800

17000

20000

48000

Outside size (mm)

2390×

1085×

2150

2639×

 1155×

2540

1785×

1400×

 2884

3464×

1500×

3157

3905×

1370×

3175

3770×

 1500×

4125

4200×

2300×

 4390



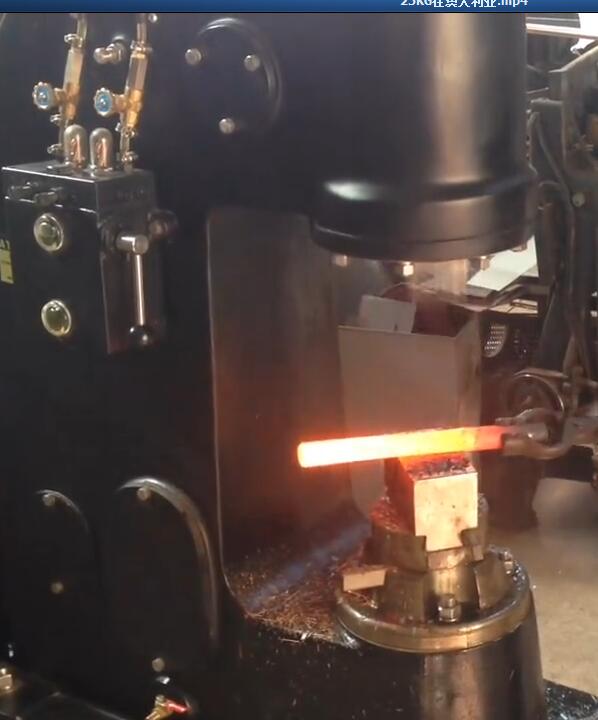

[Anyang power hammer for blacksmith]



anyang power hammer

  • Anyang pneumatic forging hammer do not need out-side air compressor. will compress air inside with motor driven flywheel.
  • The cast Iron Frame will never flex or warp.  Compare the weights of different hammers available and you will find that the Anyang is amongst the heaviest.  Cast iron is much more expensive to manufacture but allows the designer to put the mass and strength where it is required.
  • Lifetime frame warranty , five year on wearing parts against defects, one year on electrical components against defects.
  • External drive belts.  Design keeps the belts dry and away from oil. This eliminates belt slippage and extends belt life.  Replacing the belts is quick and easy.
  • The air ports are cast into the hammer.  This eliminates internal rubber hoses and fittings.
  • Low maintenance.  Anyang power hammer Automatic and fully adjustable oil system.  The two grease zerks are easy to reach.  Large tapered roller bearings in crank case for long trouble free life.
  • Simplistic design. Only 3 basic sections (crank case, compressor piston, ram).  Hammers can be disassembled, and if needed rebuilt in a day or less.
  • Very controllable, making the use of tooling easy.   The operator can change tooling or material thicknesses without adjusting the ram or stroke.
  • Easy to install- once the hammer is uncrated installation takes about 30-45 minutes.
  • Blacksmith power hammer ( C41-9, C41-15,C41-25,C41-40,C41-55,C41-75,C41-110 ) has SINGLE FRAME and good for forging work handling.
  • Anyang power hammer good for making work handling tools for forging operation, forged hunting knives, scissors, general operational tools, farm implements and iron art parts for house gate & fence.
  • All anyang power hammers have got CE. The design is safty.



[Advantages of L type blacksmith power hammer]

  anyang L blacksmith power hammer



Besides above advantags of Anyang power hammer, the new design L type hammer have a big step improvement.

  • In the new Anyang L type series power hammer, the die does not retract into the cylinder. It is much easier to change dies and make top/bottom die tooling without expensive machining.
  • Can install extra tools on the hammer die to make your work easier.
  • One key can fit all dies.
  • The throat is deeper allow big piece forging.

anyang power hammer parameter

Anyang L type Blacksmith Power Hammer parameters

Model

C41-15L

C41-25L

C41-40L

C41-55L

C41-75L

C41-110L

Weight of falling parts(kg)

15

25

40

55

75

110

Hitting energy(kj)

0.16

0.27

0.53

0.7

1

1.98

Hitting frequency(min-1)

245

250

245

230

210

180

Height of working area(mm)

160

240

245

270

297

355

D - Depth of throat(mm)

170

235

270

300

330

400

Working

Piece

Square

30×30

40×40

52×52

60×60

65×65

110×110

Round (mm)

Φ35

Φ48

Φ68

Φ75

Φ85

Φ120

Motor

Model

Y100L1-4

Y132S1-6

Y132M1-6

Y132M2-6

Y160M -6

Y180L-6

Power(kw)

2.2

3

4

5.5

7.5

15

Weight

Include Base

540

1100

1390

1700

2640

3300

L1 (mm)

1180 1470 1650

1860

1620 1910

L2 (mm)

650  740  800   880  930  1070
H1 (mm) 1025  1330  1500  1750  2220  2382
H2 (mm) 1575  1835  1920  2100
H3 (mm) 920 925 920 965 915 917

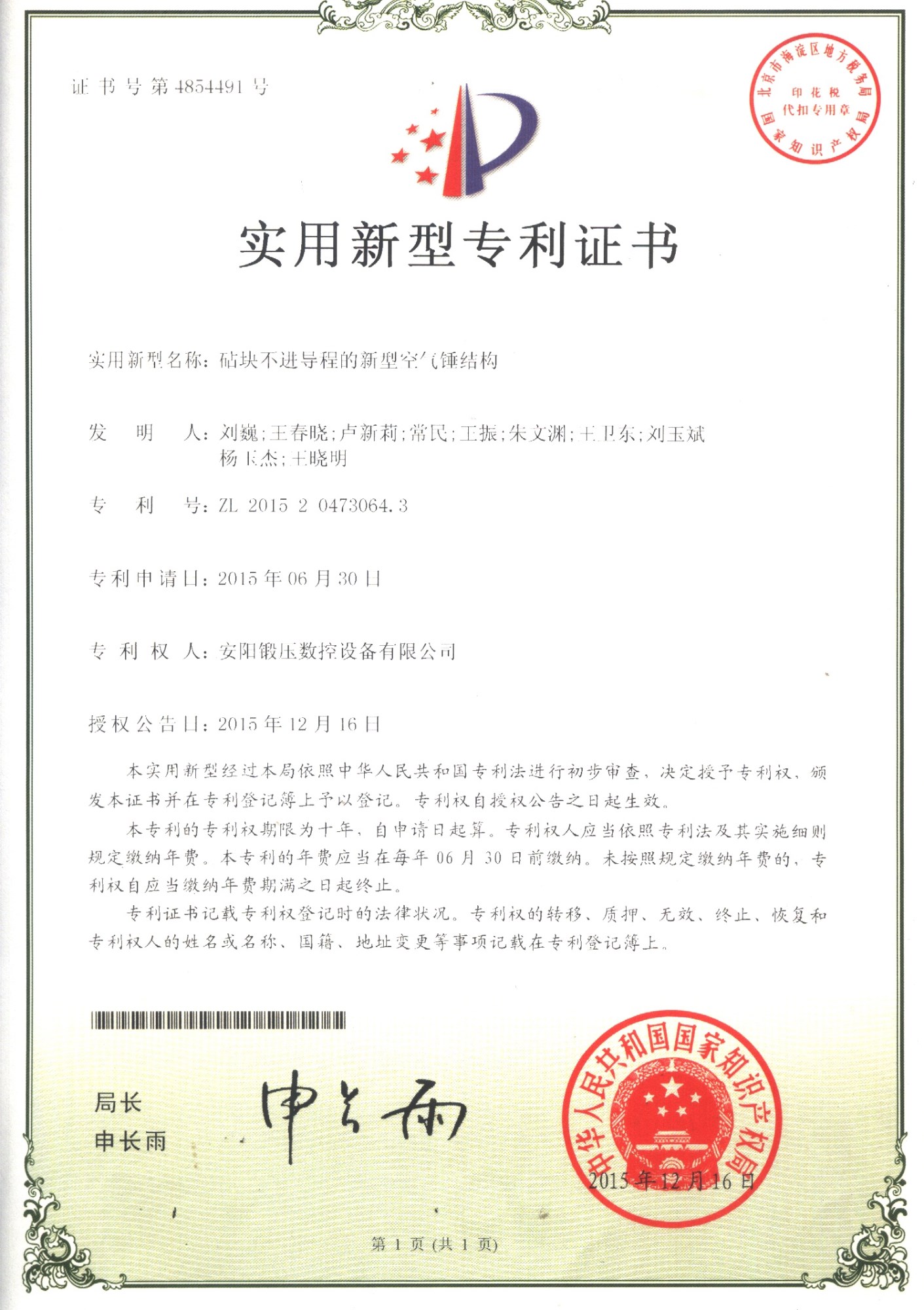

PS: L type power hammer the tup die will not retract in to the cylinder, and the throat depth is deeper.Anyang L type power hammer is patented product, no infringement allowed.



power hammer patent

[Forging Dies for Power Hammer]



Combination Draw to Flat Die for Power Hammer  Combination Fullering to Flat Die for Power Hammer

 Combination Draw to Flat Die for Power Hammer        Combination Fullering to Flat Die for Power Hammer



Drawing Die for Power Hammer  Fullering Die for Power Hammer

 Drawing Die for Power Hammer                Fullering Die for Power Hammer

Large Dome Convex Die for Power Hammer  Large Forming Die for Power Hammer

Large Dome Convex Die for Power Hammer           Large Forming Die for Power Hammer
