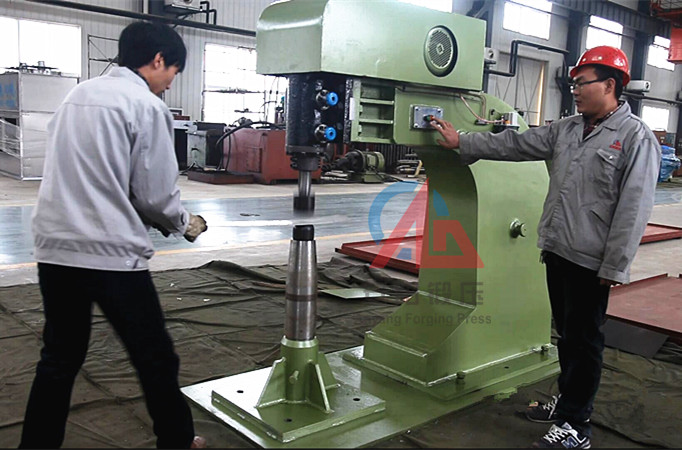

Anyang Forging Press (Group) Machinery Industry Co., Ltd successfully developed CD series Pneumatic Curved Surface Forming Machine which is widely used in the field of aircraft, automobile sheet metal repair etc, the specification including 10KG, 15KG, 25KG, 35KG, 45KG and 55KG. Anyang Forging Press Company share its patent technology. Pneumatic curved surface forming machine is also called extension power hammer or metal shaping power hammer, the main advantages are energy saving, environmental protection, high efficiency, low failure rate, better working condition, low labor intensity, and its price is cheap.



Usage：



Pneumatic curved surface forming machine is used to form the hard aluminum, copper and soft steel sheet to different kinds of complex shapes parts by blowing. While blowing, move the board along the bottom tup by hand, the top tup hits, handle the board and form it to the required shape.



Pneumatic Principle：



When the top piston moves down, the compressed air pushes the lower piston down to form a blow, then forms an air cushion under the lower piston, after the blow, the air cushion pushes the piston upward movement. When the piston rotates with the crankshaft, the piston is quickly left. The vacuum formed between the upper and lower piston makes the lower piston upward movement. In this way, when the piston moves down again, the lower piston is pushed by the compressed air to produce a sharp impact speed, forming a sharp blow force.

Anyang Forging Press (Group) Machinery Industry Co., Ltd. was founded in 1956, which is the biggest manufacturer of forging hammer in the world, it drafted China National manufacturing standard of forging hammer, which can offer design, research and development, manufacture, production. Anyang Forging Press Group can provide complete set forging machines including closed die forging equipments(CNC fully hydraulic die forging hammer, electro hydraulic die forging hammer, full hydraulic die forging hammer, round steel bar shearing machine , grinding steel ball skew rolling mill etc), free forging machine(pneumatic forging hammer, single frame free forging hammer, double frame open die forging hammer, bridge type open die forging hammer, hydraulic free forging press, ring rolling machine etc) and forging auxiliary machien(forging manipulator, forging charger , key driver machine etc) , also Anyang Forging Press (Group) Machinery Industry Co., Ltd. can offer worldwide customers forging solutions, choosing forging machines advice, forging technic design, forging machines etc services. Till now, Anyang Forging Press Company already exported its forging machines to USA, UK, Germany, France, Japan, Russia etc 66 countries.
