Forging Manipulator

< Back

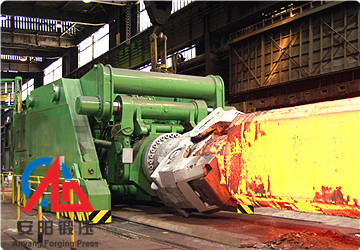

Forging manipulator include fully hydraulic and mechanical-hydraulic mixed driven two types. Forging manipulator is used to operate open die forgings under hammers and presses . It has manipulator walk, clamp clamping, the clamp head rotate, clamp frame lifting, clamp frame rotating etc actions.

Features:
1. Improve forging process efficiency and high performance.
2. Reduced forging cost significantly.
3. Movements rapid and precision is high.
4. Significantly increased the forging quality and production line capacity.



[CNC forging manipulator introduction]

 CNC Forging manipulator is fully hydraulic driven type with lateral shift function, which can be operated by manual, semi-auto, auto, able to connect with hydraulic free forging press through digital input to realize linkage operation. It is used to clamp shaft forgings and billet under open die hammer or open die press, which greatly increase the productivity and forging quality, reduce labor intensity, and realize forging production mechanization.
