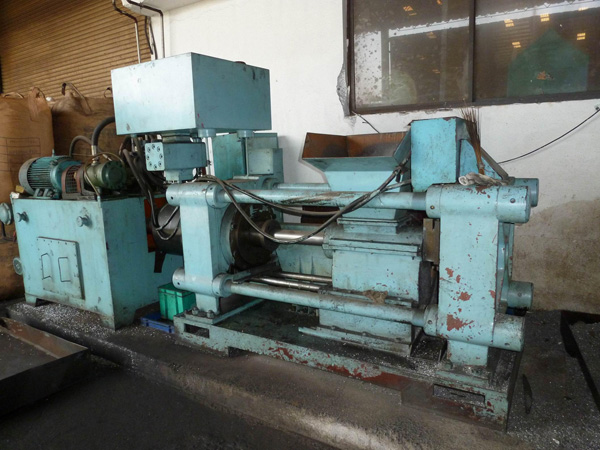

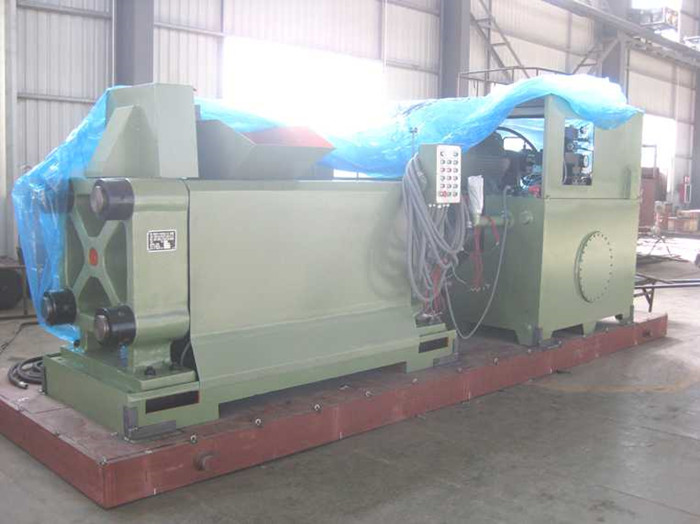

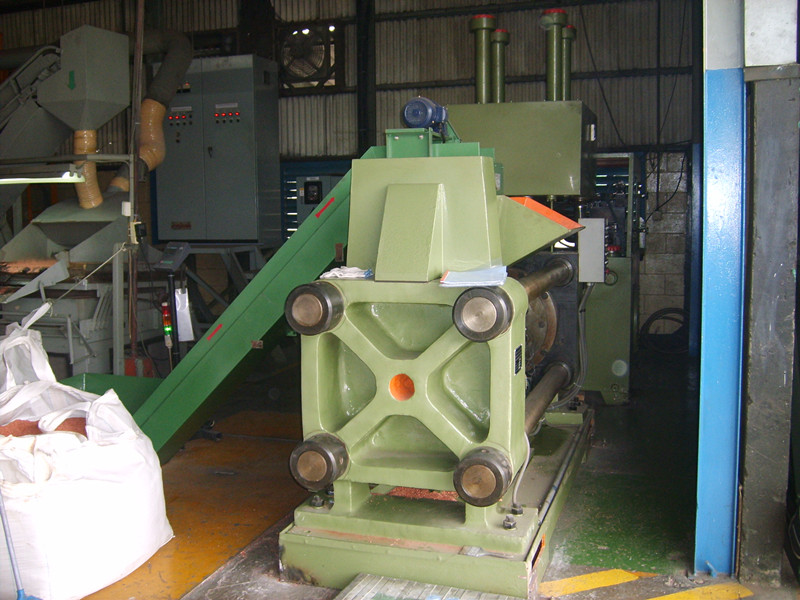

Metal Chips Briquetter

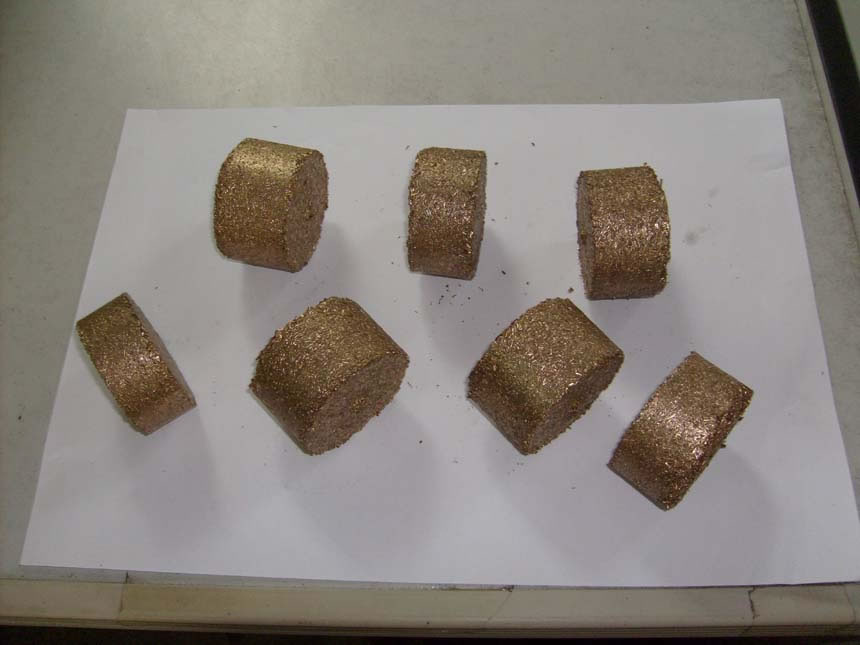

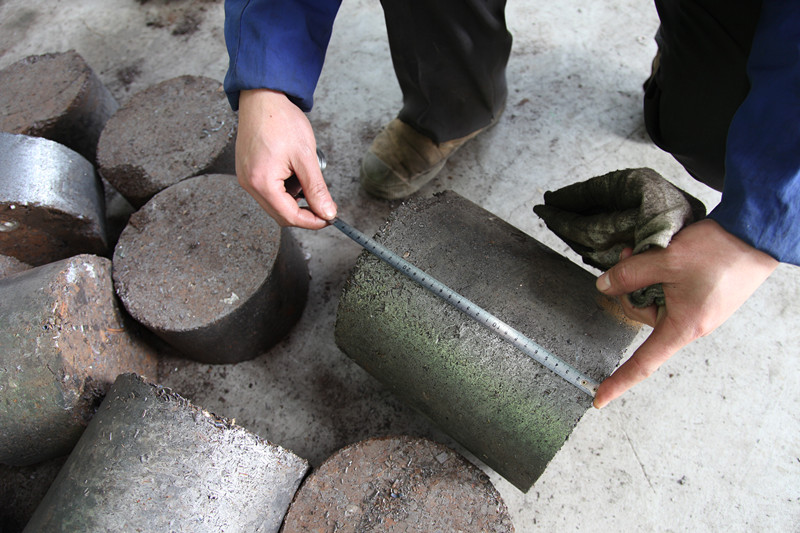

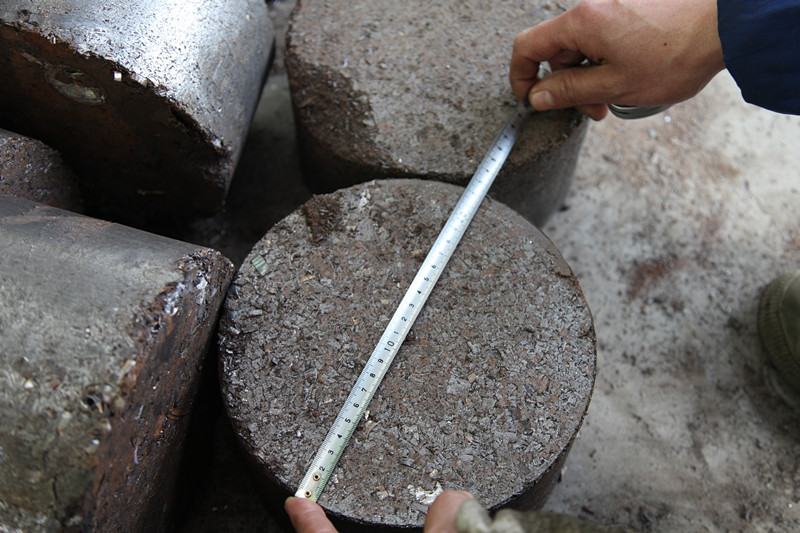

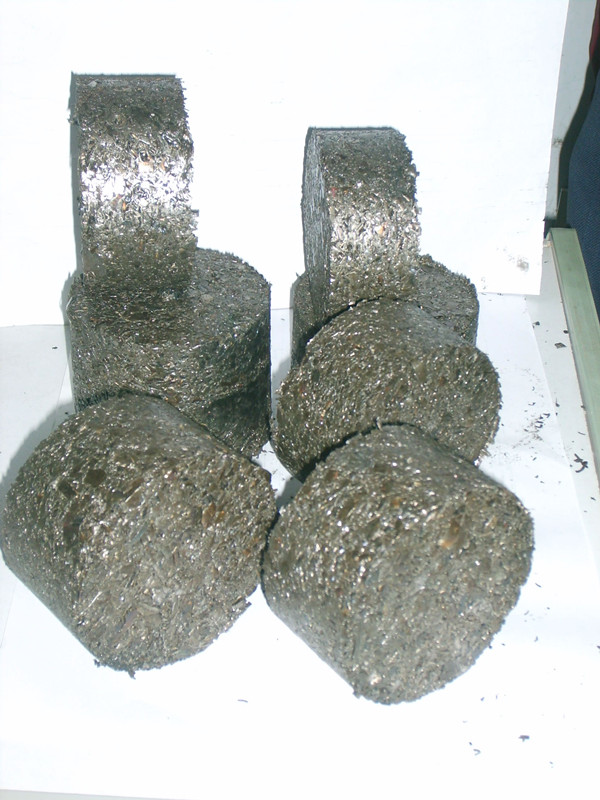

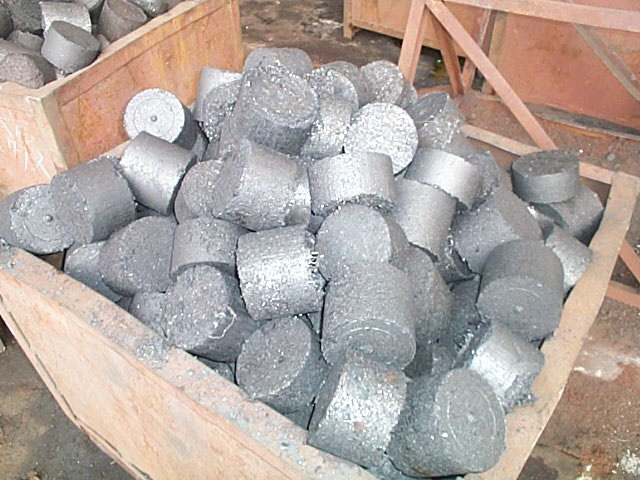

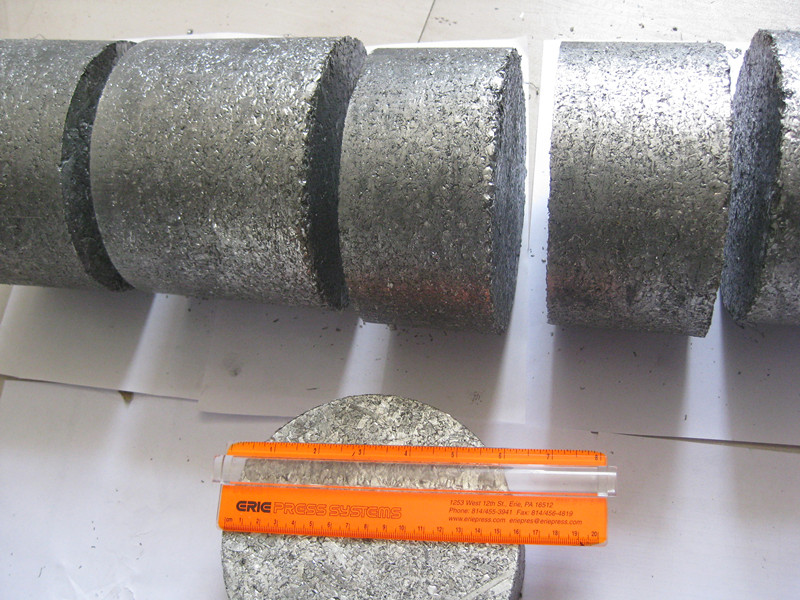

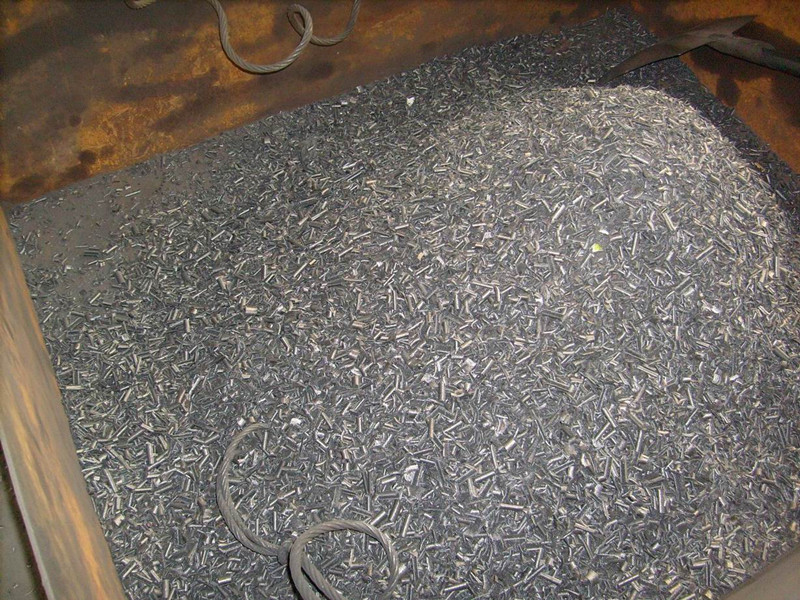

On the condition of not adding additive, the briquetting press can compress all kinds of cast iron, aluminum, copper,brass,mild steel etc metal chips to high density metal blocks.It also allows for the reclamation of valuable coolant, reduces floor space storage requirements, handling and transportation costs.

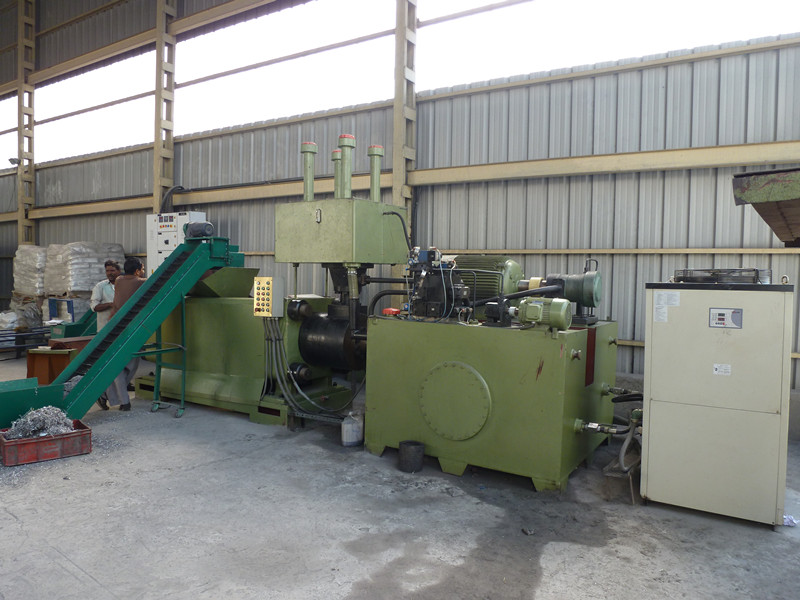

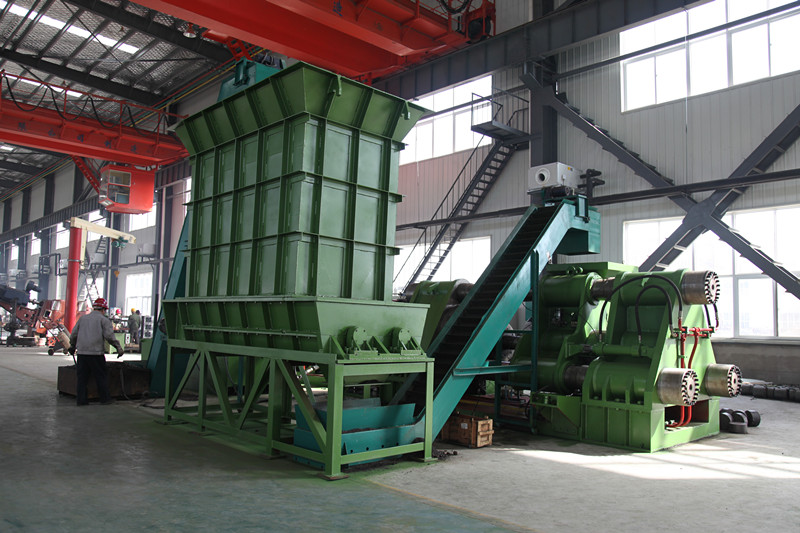

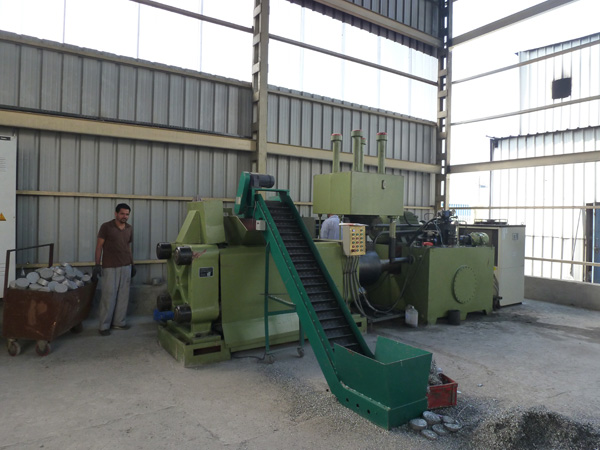

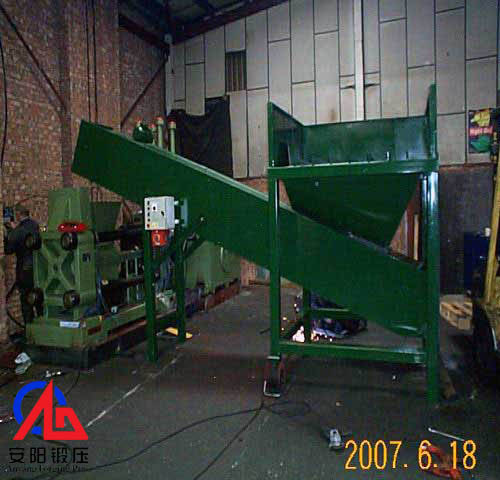

As the customer required, we can supply automatic feeder and conveyor to eased the workforce intensity.

We can supply the electric cooler,which can meet 24 hours production.

  • Parameters

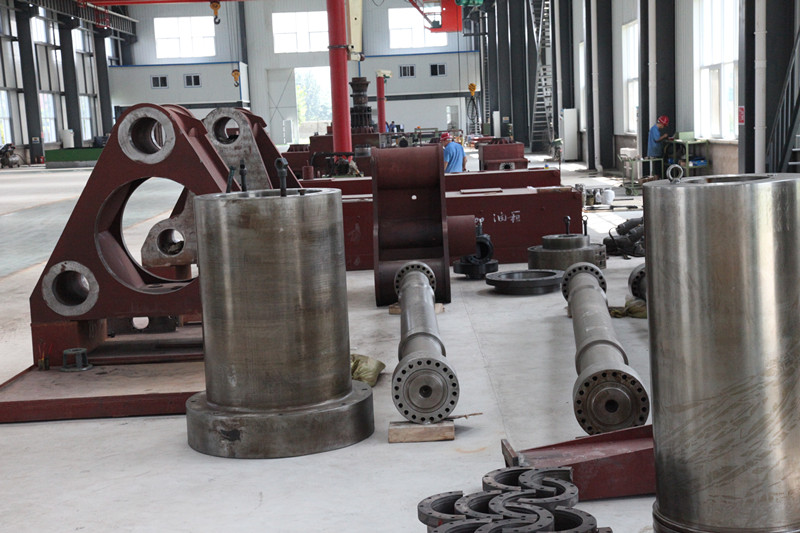

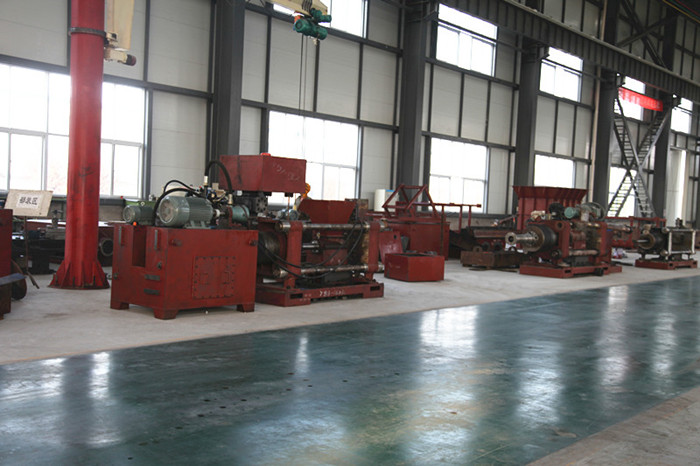

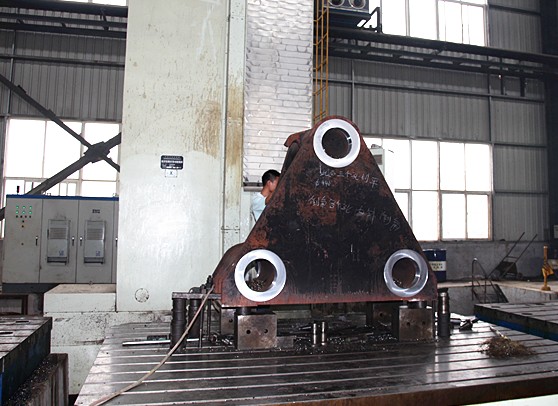

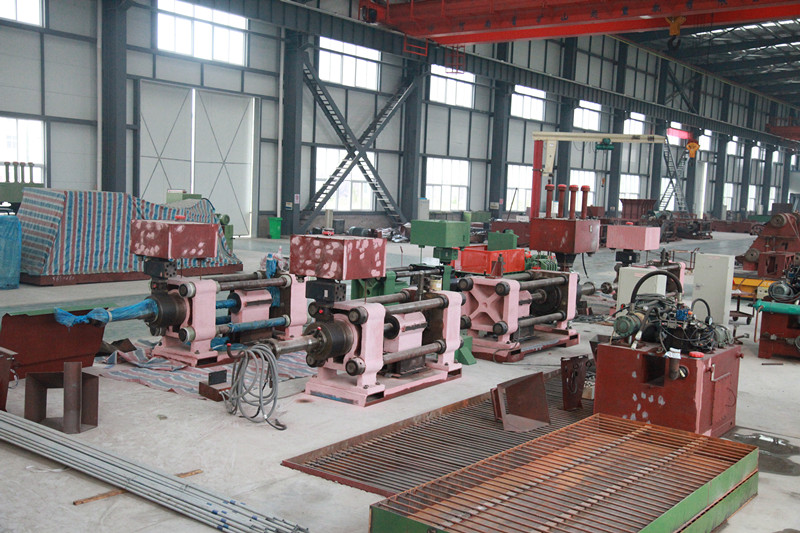

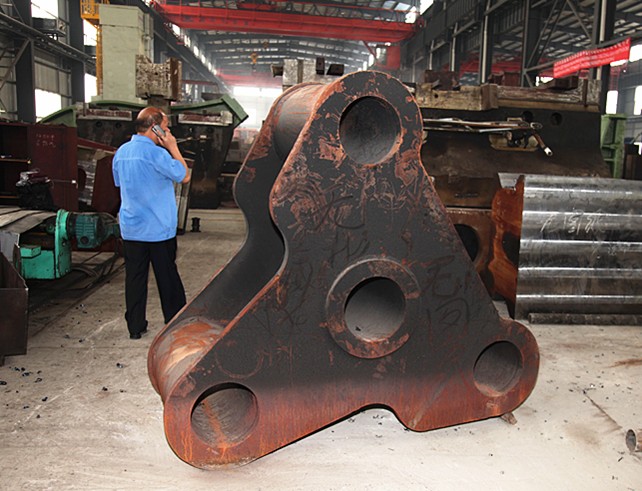

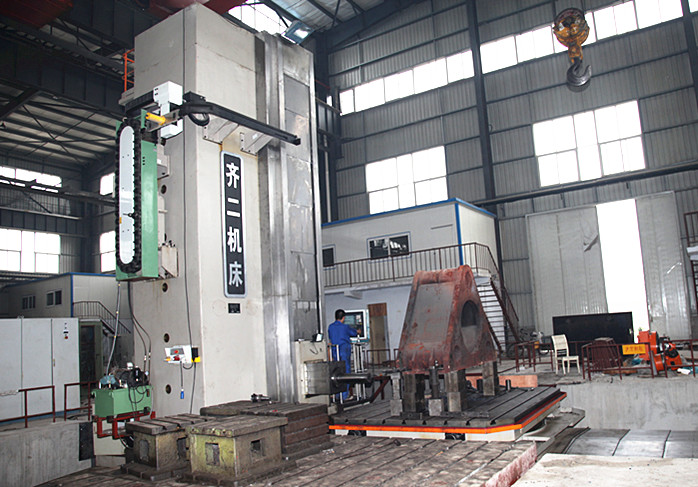

  • Manufacturing
  • Video

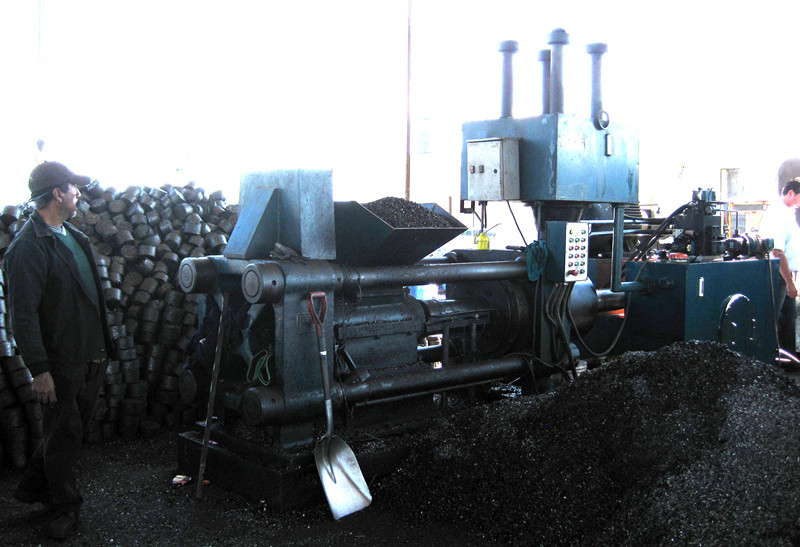

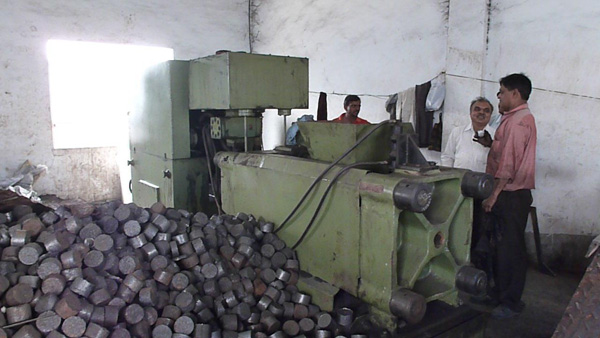

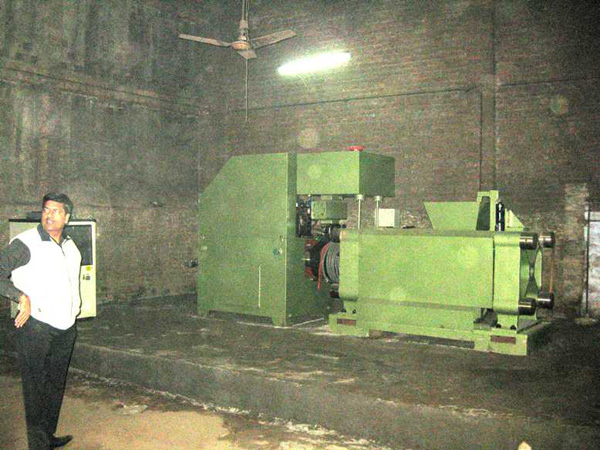

  • Customer
  • Application Fields
  • Download

Parameters

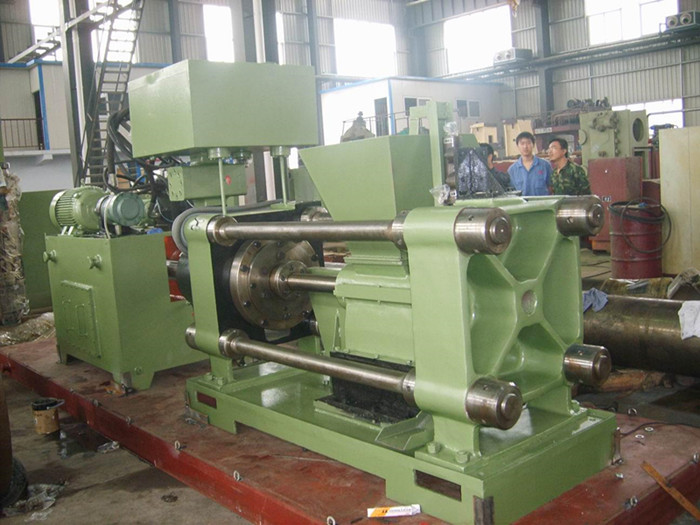

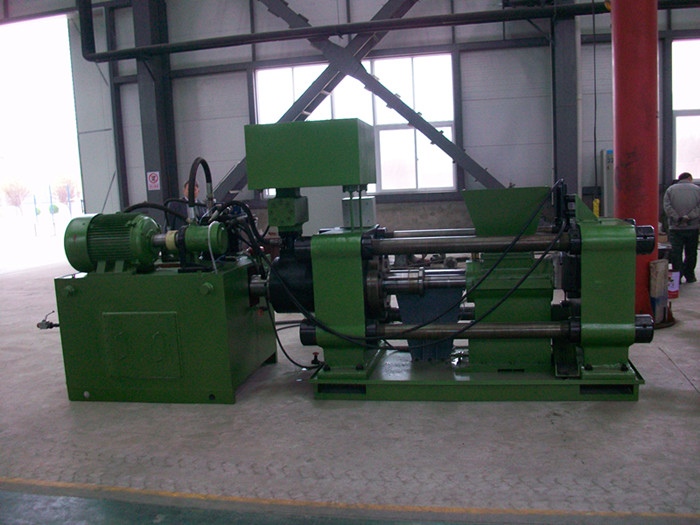

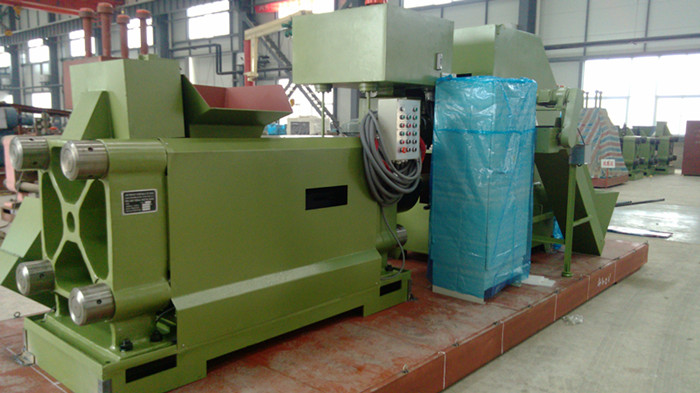

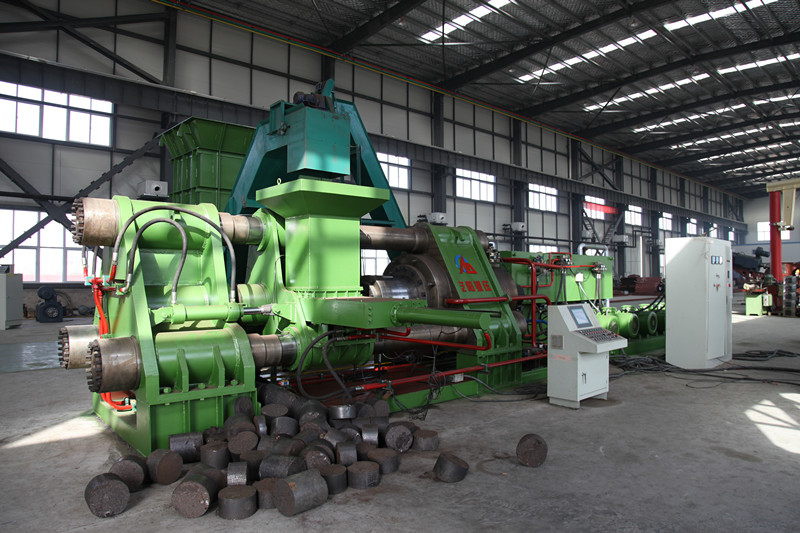

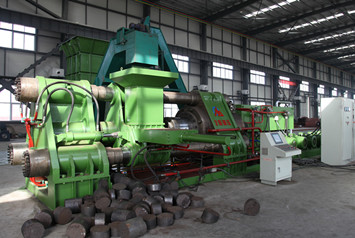

Y83 series briquetting press(horizontal type)

Model  Y83-160 Y83-230 Y83-300 Y83-850 Y83-1000
Nominal Force (KN) 1600 2300 3000 8500 10000
Block size (mm) 90x(60-110) 110x(70-120) 120x(70-120) 180x(165-180) 220x(200-250)
Block density (KG/m3) ≥5200-5400 ≥5200-5400 ≥5200-5400 ≥5200-5400 ≥5200-5400
Work pressure (Mpa) 16 23 21 25 25
Production Rate (Cast lron chip) (t/h) 0.6-0.9 1.0-1.5 1.2-1.8 6-7.5 8.5-12
Total Power (Kw) 24.2 39.2 47.2 185 225
Weight(Kg) 6000 7500 8800 50000 60000
Outside Size (mm) 4100x1086x2006 4100x1086x2006 5000x1600x2600 12000x1400x2600 15000x1600x2600


YA83 series briquetting press (vertical type)
Model ID of main
cylinder(mm)
Block size(mm)    Density of
block (t/m3)
Weight of
per piece(kg)
Pieces
per minute
Output rate per
shift(ton)
Power
(kw)
Note
YA83-150 φ250 φ80×(6080) ≥5 22.5 5 3~4 15 Manual
YA83-200A φ280 φ80×(6080) ≥5 2.53 5 4~6 15 Manual
YA83-200B φ280 φ80×(6080) ≥5 2.53 5 46 15 PLC
YA83-250 φ320 φ90×(6080) ≥5.2 2.53 5 58 18.5 PLC
YA83-315 φ360 φ(90~120)×(60~100) ≥5.5 34 56 8~12 30 PLC
YA83-360 φ400 φ(100~130)×(60~100) ≥5.56 34.5 56 814 30 PLC
YA83-500 φ450 φ(110~140)×(80~120) ≥5.56 48 45 1216 37 PLC
YA83-630 φ520 φ(140~160)×(80~150) ≥5.56 610 45 1620 45 PLC
